Performance
We’ve installed the best powertrain package combination for maximum gains from your investment. The Cummins 9-liter engine brings the power and torque you need to tackle any field. And for years of worry free operation, the RDS Allison is the most proven automatic transmission in the world.

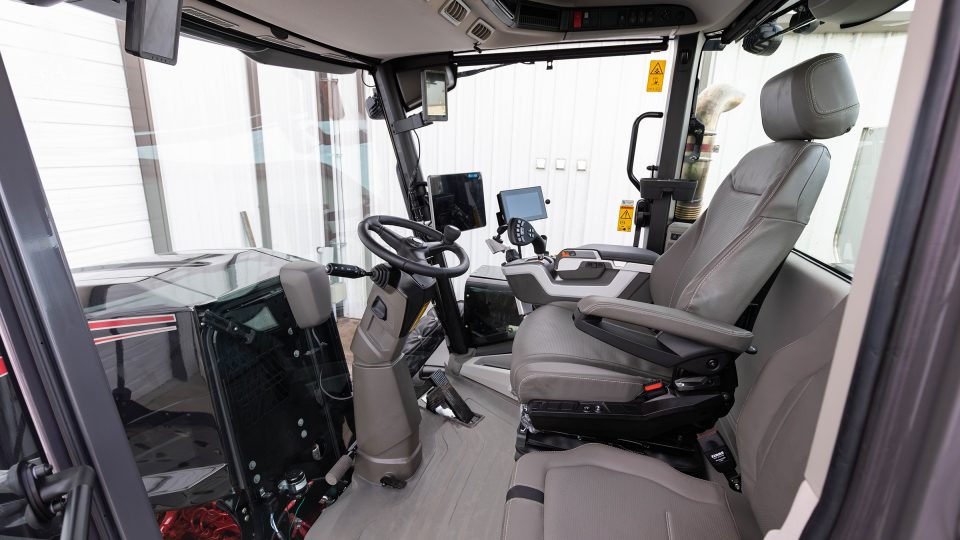

Operator Comfort
The heavy-duty air bags supplemented with heavy duty shocks create a comfortable ride which helps reduce driver fatigue and decreases over-all stress on the chassis.

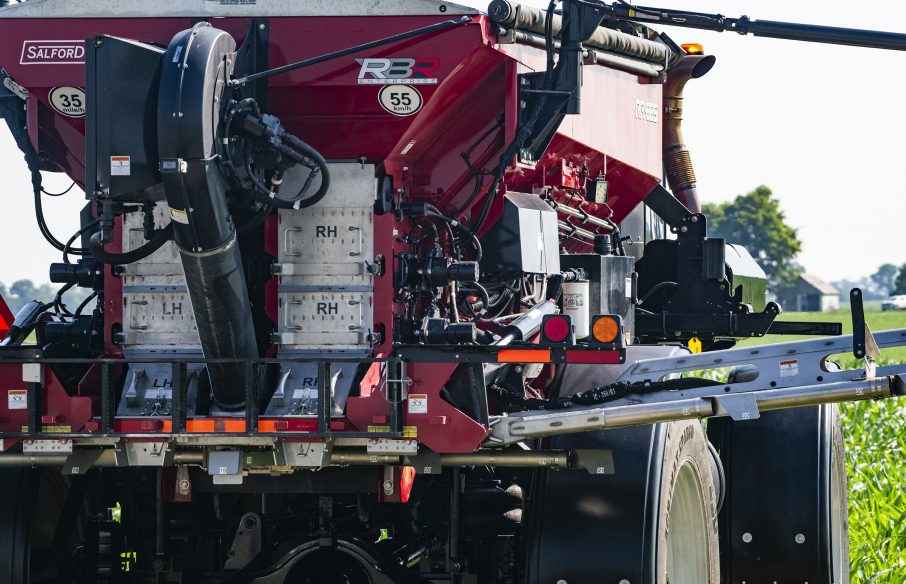

High Capacity
Spend less time loading and more time generating revenue with our high-output pneumatic systems. With up to 350 cu. ft. capacity, the Venturi 430 is the largest pneumatic row-crop machine on the market.
Multi-Season Revenue
The true 4x4 mechanical drive system, and ability to switch between row crop or floatation tires, enable the Venturi to function as a multi-season applicator. The versatility allows you to cover more acres in less time all while generating more profit.
Venturi 430 Specifications
| Engine Make / Displacement | Cummins QSL 9 Liter Tier 4F with Compact Catalyst (CCC) and Selective Catalytic Reduction (SCR) | |||
|---|---|---|---|---|
| Horsepower @ 2000 RPM | 430 HP | |||
| Fuel / DEF Capacity | 150 gal / 15 gal | |||
| Transmission | Allison Automatic 3000 RDS with Dual Mode Shift Select & Shift-Lock | |||
| Transfer Case | Marmon Herrington 2-speed 2.5:1 ratio (5 speed low range / 4 speed high range) | |||
| 4 Wheel Drive | Selectable 2x4 - 4x4, Standard on all axle configurations | |||
| Axles - Standard Fixed Track | Meritor wheel end plantery, s-cam brakes, front & rear differential lock (36,000# front / 36,000# rear) | |||
| Axles - Optional Adjustable Width / 4-Wheel Steer | Variable Track Axle (VTA) – Axle Tech adjustable wheel track 114in to 144in, 4-wheel steering (32,000# front / 32,000# rear) | |||
| Suspension | High Capacity Air-Ride Suspension with Heavy Duty Shocks, in-cab airbag dump, greaseless torque rods with extended-life polycarbonate bushings | |||
| Cab Controls | 7" Touch screen engine monitor with interactive diagnostics | |||
| Cab HVAC | Auto Climate Control | |||
| Cab Radio | FM/AM/XM Radio with CD and Bluetooth | |||
| Cab Communication | Remote Chassis Telematics - Subscription Free | |||
| Cab Options | 10" x 4" x 3/8" High Strength Tublar Steel with 40 mil Polyurea Coating | |||
| Frame | 10" x 4" x 3/8" High Strength Tublar Steel with 40 mil Polyurea Coating | |||
| Overall Length | 319 in. (8.10 m) | |||
| Wheelbase | 183 in. (4.64 m) | |||
| Overall Width | 135 in. (3.4 m) | |||
| Overall Height | 147 in. (3.73 m) | |||
| Weight - Single Product | 30,100 lbs. | |||
| Weight - Double Product | 31,400 lbs. | |||
| Row Crop Tires | 380/90R46 173D (Standard) | 380/105R50 179D (Optional) | 420/95R50 177D (Optional) | 480/80R50 177D (Optional) |
| Flotational Tires | 650/65R38 | 710/70R38 | 800/50R42 | |
