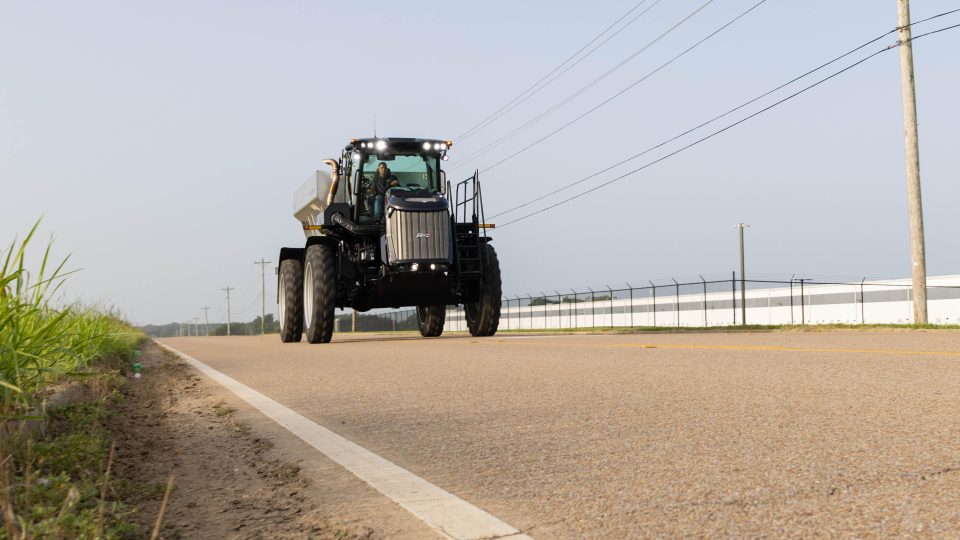

Transfer Speed

Our mechanical drive system allows for higher road speeds to maximize acres covered per day and minimize non-revenue generating drive time.

RBR optimal transfer speed

Multi-Season Revenue

With the capability to swap between a variety of row crop and flotation tires, the Vector offers the versatility of a pre and post plant machine, generating revenue all season long.

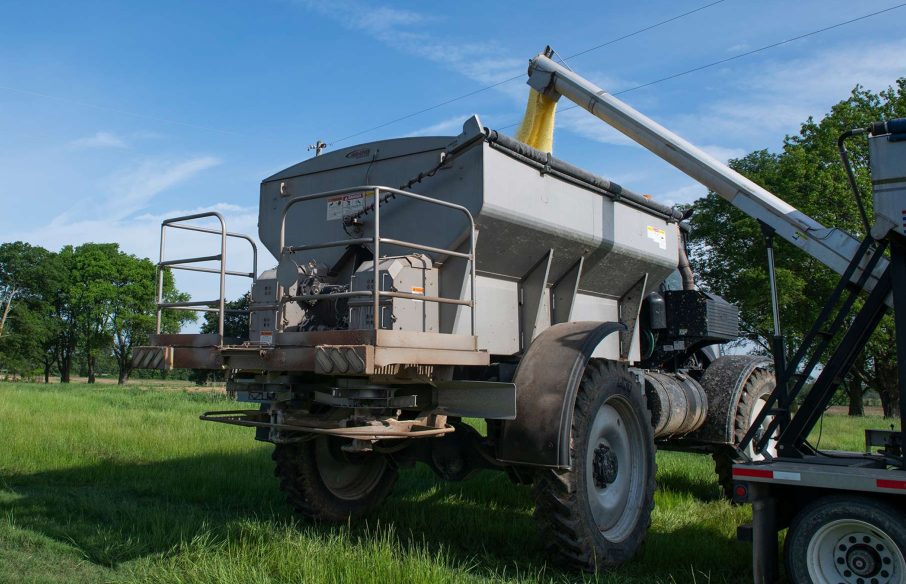

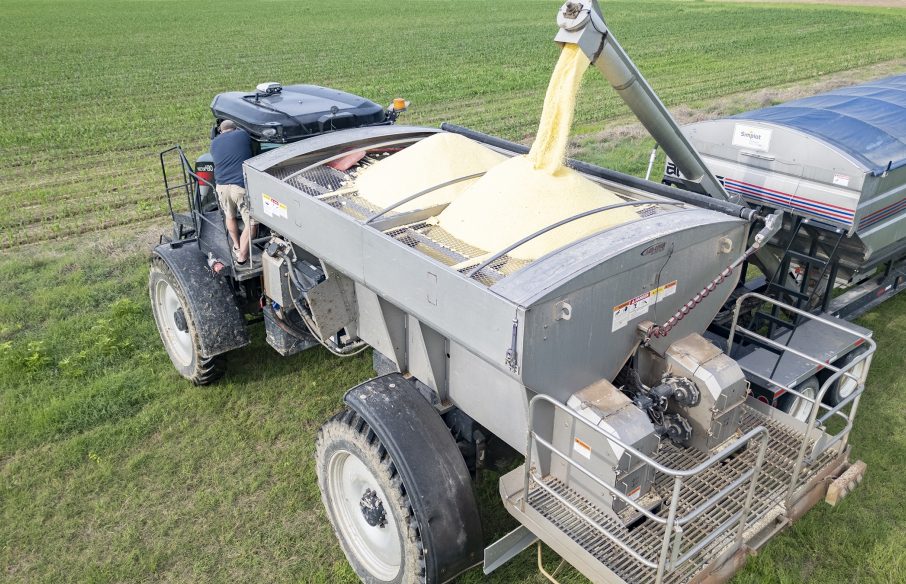

Minimize load time

Spend less time loading and more time generating revenue with the largest capacity row crop spreader on the market.

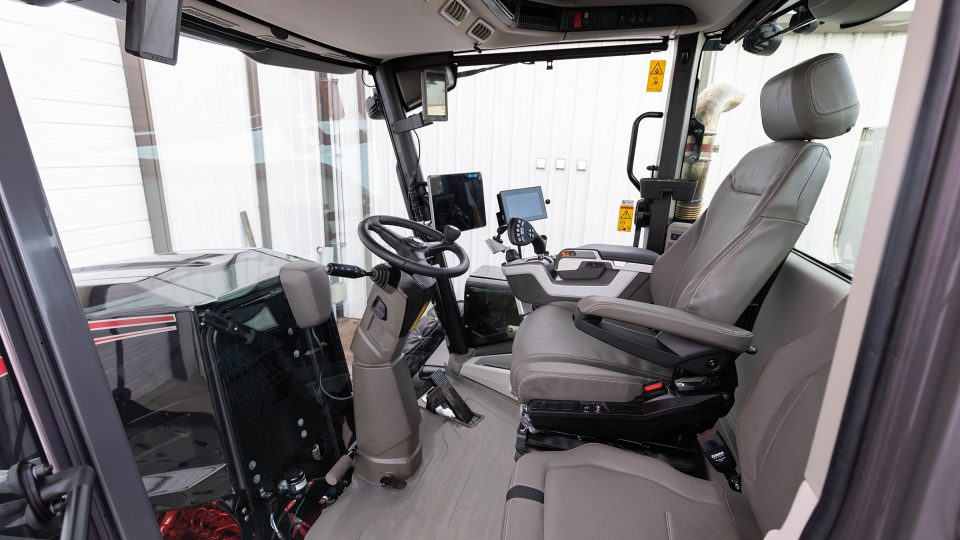

Operator Comfort

The cab is designed specifically for application equipment to create an environment for maximum focus and efficiency. Controls and information are easily accessible and intuitive, providing all the information necessary to assist the operator in safe and effective machine operation.

RBR Comfortable operator cab

Selectable 4X4

With the ability to select between 2X4 and 4X4, you can have the confidence your machine will perform in the most adverse conditions

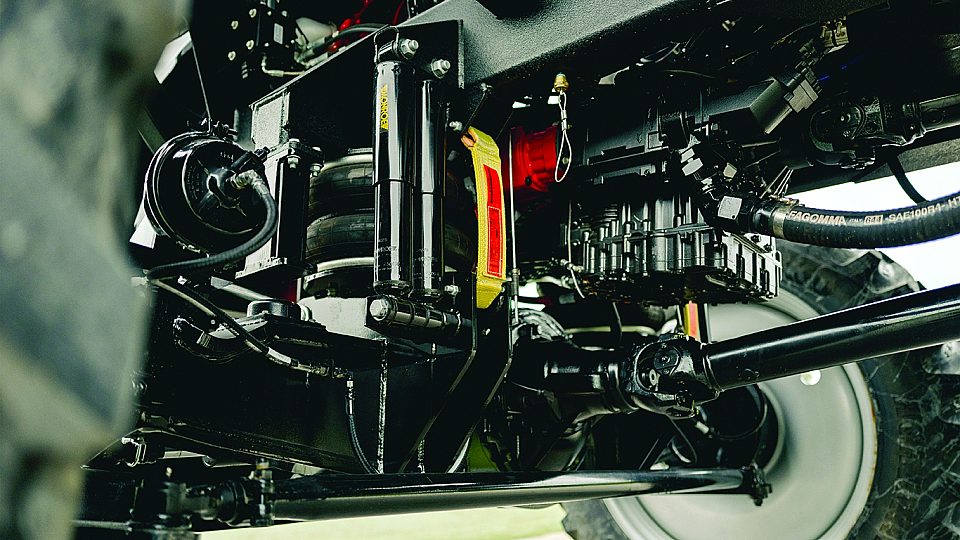

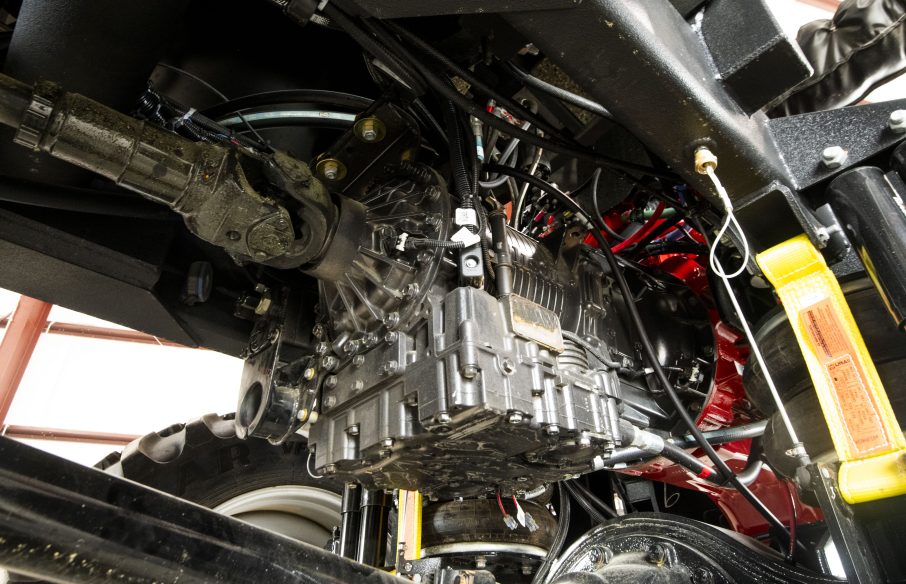

RBR Mechanical Drive Train

New Leader Specifications

Engine Make / Displacement Cummins QSL 9 Liter Tier 4F with Compact Catalyst (CCC) and Selective Catalytic Reduction (SCR)
Horsepower @ 2000 RPM 430HP
Fuel / DEF Capacity 150 gal / 15 gal
Transmission Allison Automatic 3000 RDS with Dual Mode Shift Select & Shift-Lock
Transfer Case Marmon Herrington 2-speed 2.5:1 ratio (5 speed low range / 4 speed high range)
4 Wheel Drive Selectable 2x4 - 4x4, Standard on all axle configurations
Axles - Standard Fixed Track AxleTech 5000 series double reduction plantery (29,000# Front / 29,000# Rear)
Axles - Optional Adjustable Width / 4-Wheel Steer Variable Track Axle (VTA) – Axle Tech adjustable wheel track 114in to 144in, 4-wheel steering (32,000# front / 32,000# rear

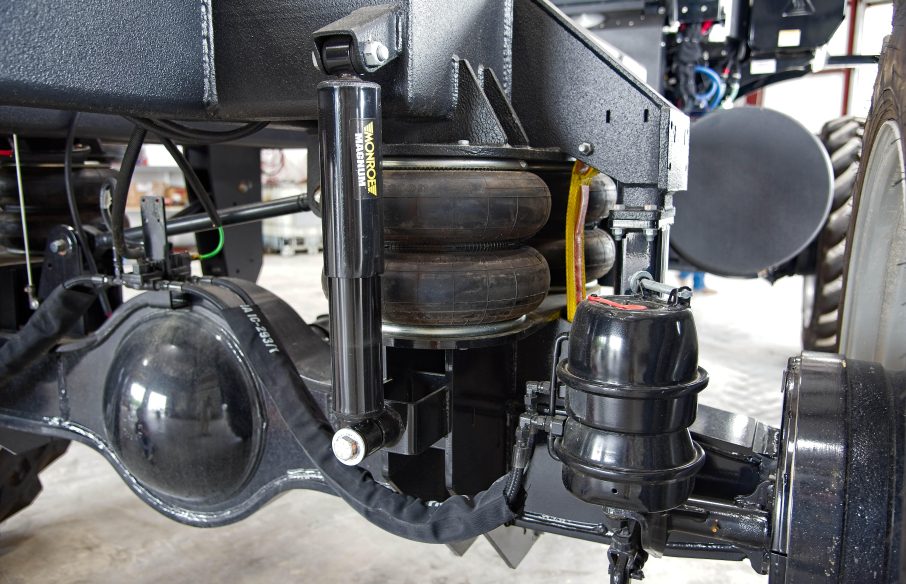

Suspension High Capacity Air-Ride Suspension with Heavy Duty Shocks, in-cab airbag dump, greaseless torque rods with extended-life polycarbonate bushings
Cab Controls 7" Touch screen engine monitor with interactive diagnostics
Cab HVAC Auto Climate Control
Cab Radio FM/AM/XM Radio with CD and Bluetooth
Cab Communication Remote Chassis Telematics - Subscription Free
Cab Options Heated and Ventilated Leather Seat, Leather Wrapped Steering wheel, High-Intensity LED Lighting, and Window Tint
Frame 10" x 4" x 3/8" High Strength Tublar Steel with 40 mil Polyurea Coating
Overall Length 292 in. (7.41 m)
Wheelbase 168 in. (4.26 m)
Overall Width 135 in. (3.4 m)
Overall Height 147 in. (3.73 m)
Weight - Single Product 22,480 lbs.
Weight - Double Product 23,600 lbs.
Weight - Triple Product 24,000 lbs.
Row Crop Tires 380/90R46 173D (Standard) 380/105R50 179D (Optional) 420/95R50 177D (Optional) 480/80R50 177D (Optional)
Flotational Tires 650/65R38 710/70R38 800/50R42
