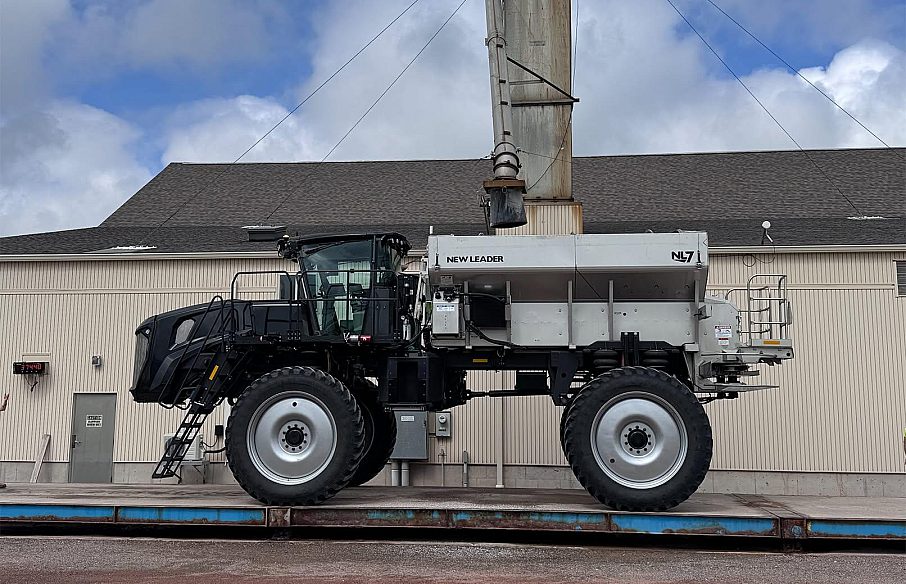

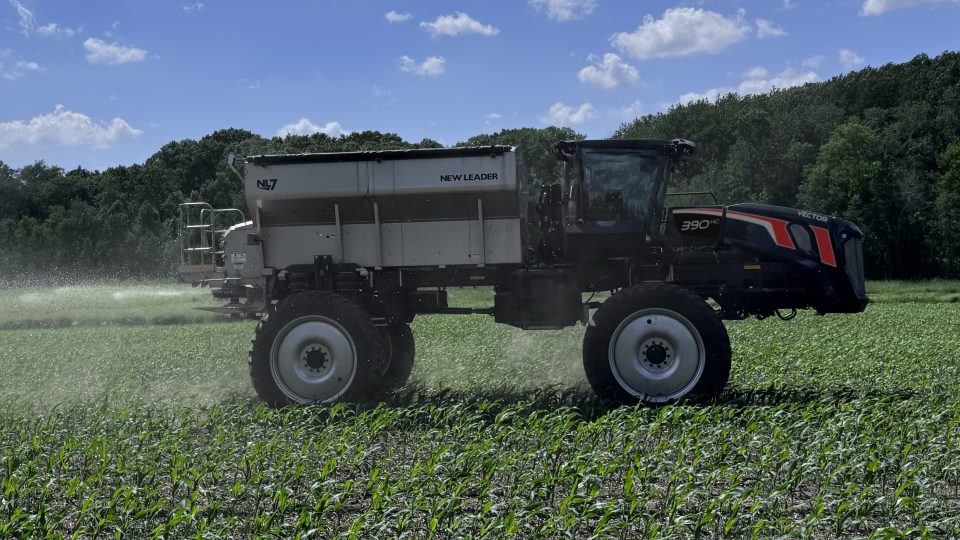

HC Spinner
Available
HC Air
Coming in 2027

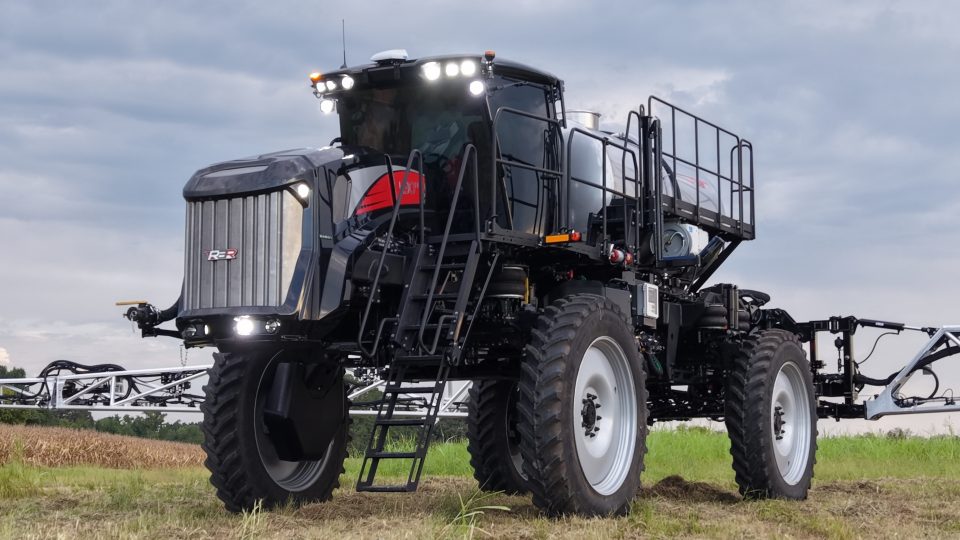

HC Liquid
Available

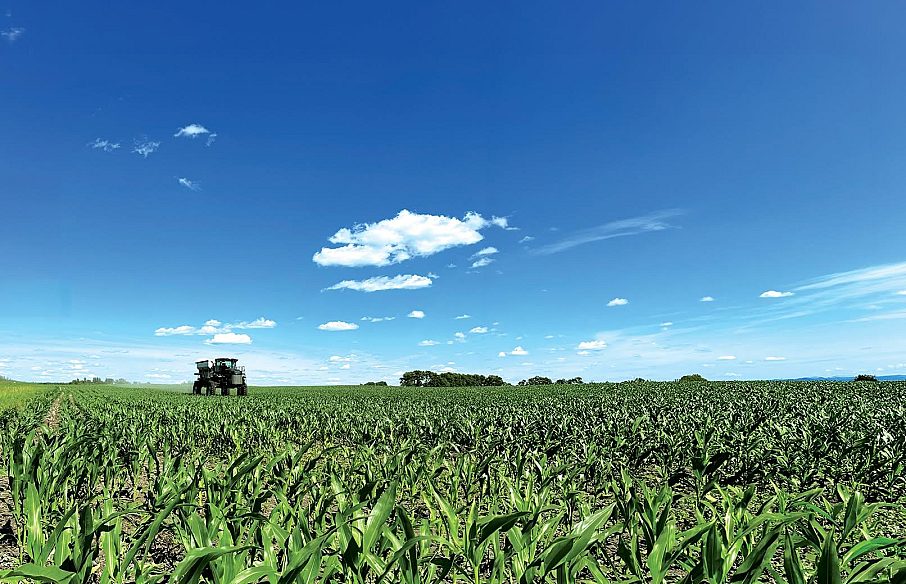

Transfer Speed
Best-in-industry transfer speed gets you from field to field faster, turning unproductive road time into productive acres. More ground covered per day means more revenue per season, without sacrificing durability.

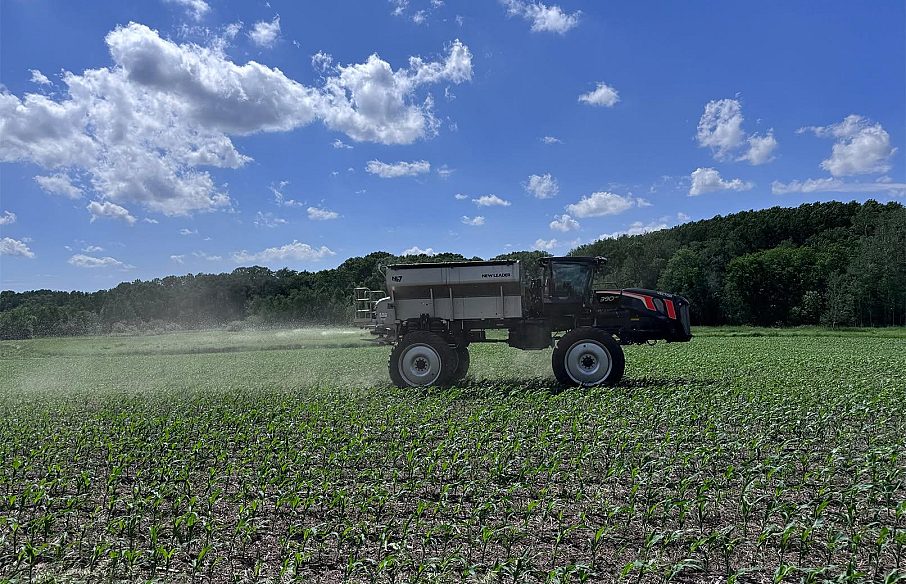

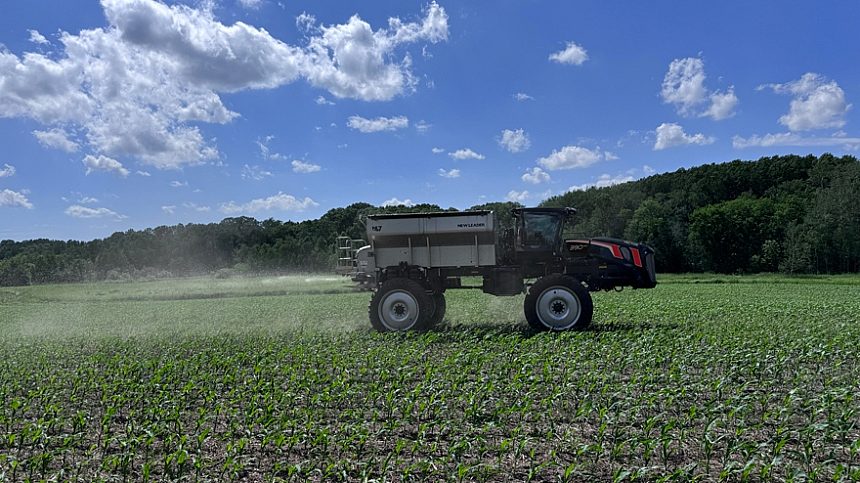

Pre- and Post-Emergence
A true all-in-one platform built to handle both pre-season and post-emergence applications without compromise with 53 inches of crop clearance and RBR’s touches mechanical drivetrain.

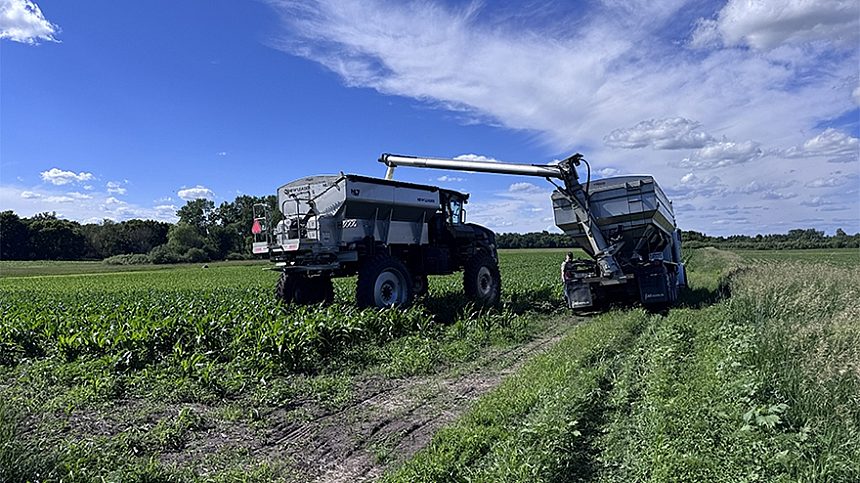

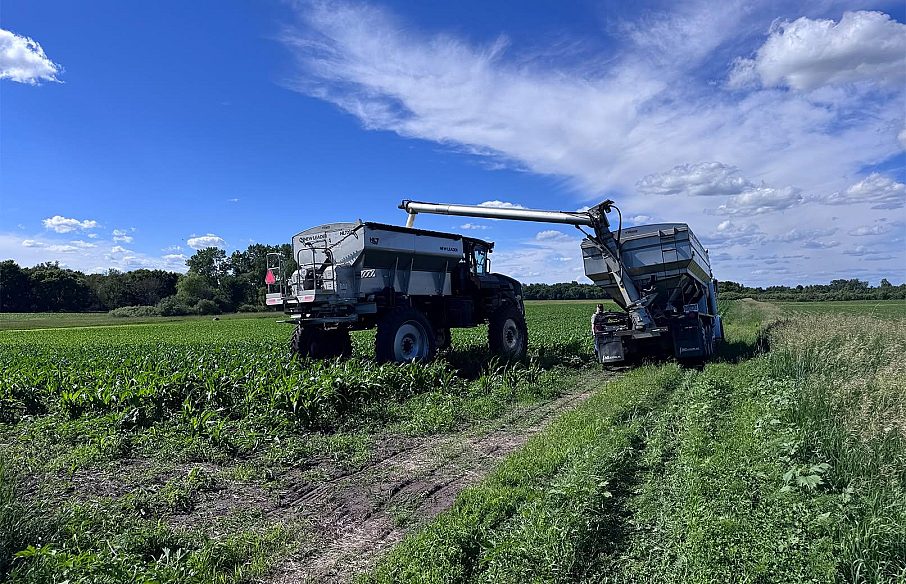

Minimize Load Time
High-capacity systems mean fewer stops to reload. Less time filling, more time applying — every minute saved on loading is a minute back in the field, where the acres and the revenue are.
Operator Comfort
A redesigned suspension and refined cab reduce fatigue on long days in the field. Comfortable operators stay sharp and productive longer, covering more acres with the same focus they started with.
Selectable 4X4
True mechanical power to all four wheels delivers unmatched traction when conditions demand it. Operators get confident control in mud, slopes, and soft ground — without sacrificing speed or performance.
High Clearance Specifications
Specification |
HC Spinner |
HC Air |
HC Liquid |
|---|---|---|---|
| Powertrain | |||
| Engine Make / Displacement | Cummins QSL 9 Liter Tier 4F with CCC and SCR | ||
| Horsepower @ 2,100 RPM | 390 HP (optional 430 HP) | 430 HP | 390 HP (optional 430 HP) |
| Transmission | Standard Allison Automatic 3000 RDS with Dual Mode Shift Select & Shift-Lock Optional HydromechiVT | ||
| Transfer Case | Marmon Herrington 2-speed 2.5:1 ratio (5-speed low range / 4-speed high range) | ||
| 4 Wheel Drive | Selectable 2x4–4x4, standard on all axle configurations | ||
| R46 Chassis, Frame, Tires | |||
| Axles - Standard | Fixed axle only (first release) | ||
| Axles - Optional Adjustable Width / 4-Wheel Steer | Optional 4WS available; turning radius 30 ft. in 2WS, 15 ft. in 4WS | ||
| Suspension | High-Capacity Air-Ride Suspension with Heavy Duty Shocks, in-cab airbag dump, greaseless torque rods with extended-life polycarbonate bushings | ||
| Frame | 10" x 4" x 3/8" High Strength Tubular Steel with 40 mil Polyurea Coating | ||
| Standard Tires | 380/105R50 | ||
| Flotational Tires | 750/60R46 | ||
| Fuel / Def Capacity | 200 gal. saddle poly fuel tanks (fill from either side); integrated poly 18 gal. DEF tank | ||
| Brakes | 4-wheel disc brakes | ||
| Crop Clearance | 53 in. with 50 in. tires | ||
| Weight Balance | Approx. 50/50 with half-full hopper or tank | ||
| Cab | |||
| Cab Controls | 10" MD4 chassis display screen | ||
| Cab HVAC | Automatic dual zone HVAC system | ||
| Cab Radio | FM/AM Radio with Bluetooth | ||
| Cab Communication | Remote Chassis Telematics—Subscription Free | ||
| Standard Cab Options | Heated and Ventilated Leather Seat, Automatic Air Suspension Adjustment | ||
| Engine Cooling | Variable-pitch fan for up to 5% fuel savings; reduced engine and fan noise in vab | ||
| Options | |||
| Full Length Belly Pan | Optional | ||
| Wheel Leg Crop Deflectors | Optional | ||
| 4-Wheel Steering | Optional | ||
| Dimensions & Weight | |||
| Overall Length | 389 in. (9.88 m) | 422 in. (10.72 m) | 409 in. (10.39 m) |
| Overall Width | 142 in. (3.61 m) | 153 in. (3.89 m) | 169 in. (4.29 m) |
| Wheelbase | 194 in. (4.93 m) | 194 in. (4.93 m) | 194 in. (4.93 m) |
| Overall Height | 162 in. (4.11 m) | 162 in. (4.11 m) | 162 in. (4.11 m) |
| Weight - Single Product | 37,000 lb. | 42,650 lb. | 38,200 lb. |
