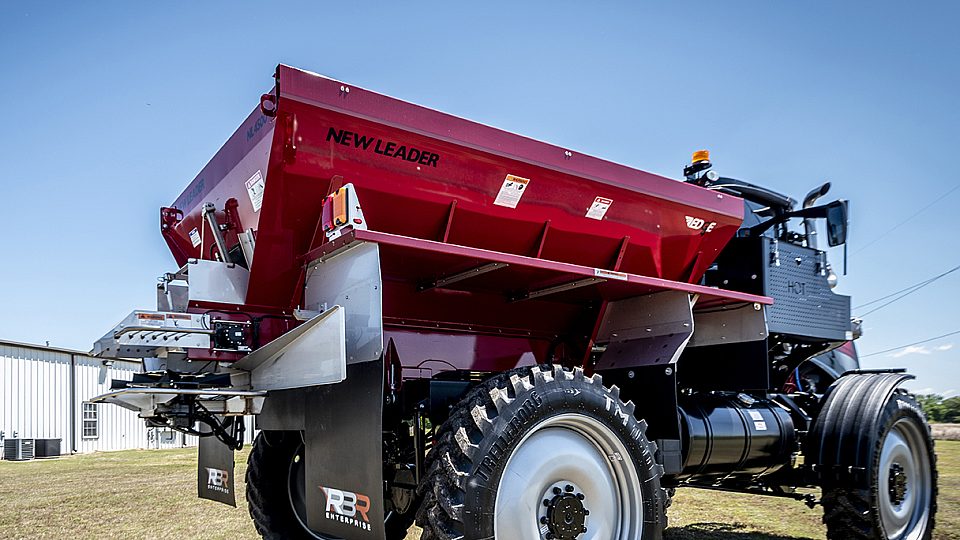

NL4500
The Edge includes these advanced features such as:
- Automatic chain tensioner for extended belt life
- Independent spinner speed control for consistent RPMs
- Boundary spreading capabilities for proper product placement
To maintain rates through all RPM ranges, we’ve designed the chassis hydraulics with a pressure compensated system that can achieve consistent rates at low engine RPMs. The NL 4500 Edge is available in painted 409SS or 304SS and comes standard with 304SS subframe and cross members to protect your investment.
NL5000G5
The new NL5000G5 is the ultimate broadcast spreader with pinpoint accuracy. With 16-section swath width control, the G5 has fore/aft and left/right automatic spinner adjustment for incredible precision. Features include:
- Boundary spreading
- Last pass spreading
- Hydraulic feed gate
- Automatic chain tensioner
Chassis hydraulics includes the pressure compensated system that maintains rate at low engine RPM’s. The G5 is available in painted 409SS or 304SS and comes standard with 304SS subframe and cross members to protect your investment.

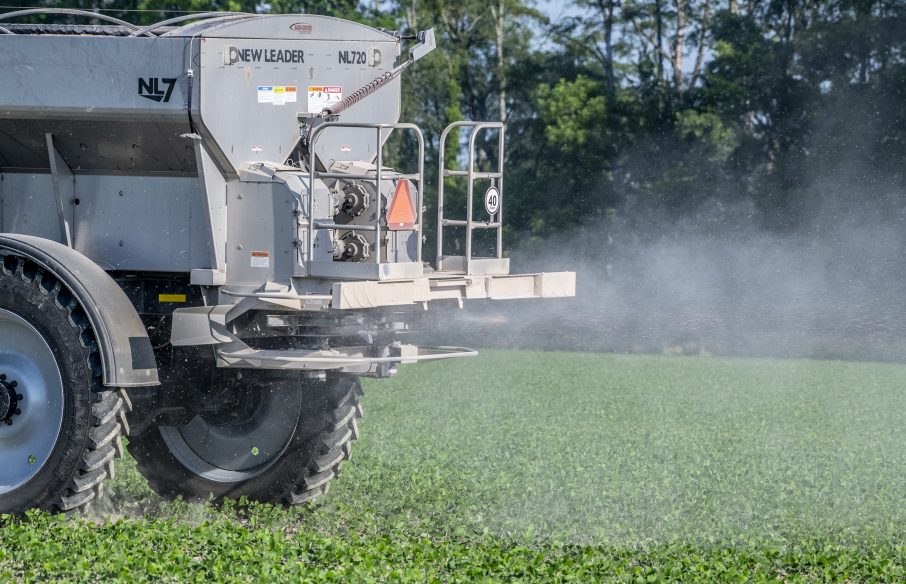

NL7
With split conveyors and stacked twin discs, the NL7 represents a shift in the agricultural industry. Combining unprecedented design with ease-of-use, the NL7 can help you achieve unrivalled productivity. Crop damage, unnecessary passes, overlap, and soil compaction will become a thing of the past. Benefits include:
- 120’ spread pattern
- 33% more efficient high output design
- Industry leading pattern control
- Simple, intuitive calibration process
- No grease points, maintenance-free bearings
- Easy to change spread width from 120’, 90’, 80’, 70’
- Available in single bin, dual bin, or triple bin
Spinner Spreader Specifications
L4500 |
L5000 |
NL710 |
NL720 |
NL730 |
|
|---|---|---|---|---|---|
| Spreader Size | 14 FT Length x 102 IN Width | 16FT Length x 102 IN With | 14 FT Length x 102 IN Width | ||
| Spreader Material | RBR Silver Finish 304SS | ||||
| Capacity | 300 CU FT | 343 CU FT | 395 CU FT | 363 CU FT | 377 CU FT |
| Multi Product | Dual product - 5FT or 7FT Insert, or 8 FT Multi-bin Insert - 3 or 4 product capability | Dual product - 5FT or 7FT Insert, or 8 FT Multi-bin Insert - 3 or 4 product capability | |||
| Multi Product Capacity | 5FT Insert - 115 CU FT (368 CU FT total) 7FT Insert - 161 CU FT (356 CU FT total) 8FT Multi-Bin 195/ 143/ 23/ 21 (382) | 5FT Insert - 115 CU FT (426 CU FT total) 7FT Insert - 161 CU FT (414 CU FT total) 8 FT Multi-Bin 253 / 143 / 23 / 21 (440) | Bin 1 - 395 CU FT | Bin 1 - 218 CU FT Bin 2 - 145 CU FT | Bin 1 - 206 CU FT Bin 2 - 128 CU FT Bin 3 - 43 CU FT |
| NL710 Features | 120FT spread pattern, pressure compensated product pump, grease free bearings, 304SS subframe and cross members, operator platform on rear, larger 395 CU FT capacity | ||||
| NL720 Features | 120FT spread pattern, pressure compensated product pump, grease free bearings, 304SS subframe and cross members, operator platform on rear | ||||
| NL730 Features | 120 FT spread pattern, pressure compensated product pump, grease free bearings, 304SS subframe and cross members, operator platform on rear | ||||
| L4500 Features | Pressure compensated product pump, 304SS subframe and cross members, automatic belt tensioner, boundary spreading capabilities, independent spinner control, 304SS jack and jack-handle, pressure and temp sensors, centralized grease bank | ||||
| L5000 Features | Pressure compensated product pump, 304SS subframe and cross members, automatic belt tensioner, auto-adjust feed gate, auto spinner adjustment - fore/aft and left/right, 16 section product control, 1/2 width spreading, 304SS jack and jack-handle, pressure and temp sensors, centralized grease bank | ||||
