System Options

There are two optional systems to best suit your operations. The mid-ship Case 810 Flex-Air, or the new rear boom RA-885 from Salford.


We’ve installed the best powertrain package combination for maximum gains from your investment. The Cummins 9-liter engine brings the power and torque you need to tackle any field. And for years of worry free operation, the RDS Allison is the most proven automatic transmission in the world.

RBR High Performance Transmission

Operator Comfort

The heavy-duty air bags supplemented with heavy duty shocks create a comfortable ride which helps reduce driver fatigue and decreases over-all stress on the chassis.

RBR Comfortable operator cab

High Capacity

Spend less time loading and more time generating revenue with our high-output pneumatic systems. With up to 350 cu. ft. capacity, the Venturi 400 is the largest pneumatic row-crop machine on the market.

Multi-Season Revenue

The true 4x4 mechanical drive system, and ability to switch between row crop or floatation tires, enable the Venturi to function as a multi-season applicator. The versatility allows you to cover more acres in less time all while generating more profit.

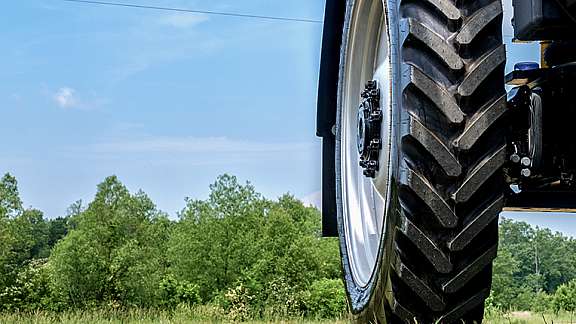

RBR Multi season revenue tires

Venturi 400 Specifications

Engine Make / Displacement Cummins QSL 9 Liter Tier 4F with Compact Catalyst (CCC) and Selective Catalytic Reduction (SCR)
Horsepower @ 2000 RPM 400 HP
Fuel / DEF Capacity 150 gal / 15 gal
Transmission Allison Automatic 3000 RDS with Dual Mode Shift Select & Shift-Lock
Transfer Case Marmon Herrington 2-speed 2.5:1 ratio (5 speed low range / 4 speed high range)
4 Wheel Drive Selectable 2x4 - 4x4, Standard on all axle configurations
Axles - Standard Fixed Track AxleTech 5000 series double reduction plantery (29,000# Front / 29,000# Rear)
Axles - Optional Fixed Track Meritor wheel-end plantery, S-Cam brakes, Front & Rear Differential Lock (36,000# Front / 36,000# Rear)
Axles - Optional Adjustable Width/4-Wheel Steer Variable Track Axle (VTA) - AxleTech adjustable wheel track axle 114" to 144", 4-wheel steering (32,000# Front / 32,000# Rear @ full width)
Suspension High Capacity Air-Ride Suspension with Heavy Duty Shocks, in-cab airbag dump, greaseless torque rods with extended-life polycarbonate bushings
Cab Controls 7" Touch screen engine monitor with interactive diagnostics
Cab HVAC Auto Climate Control
Cab Radio FM/AM/XM Radio with CD and Bluetooth
Cab Communication Remote Chassis Telematics - Subscription Free
Cab Options 10" x 4" x 3/8" High Strength Tublar Steel with 40 mil Polyurea Coating
Frame 10" x 4" x 3/8" High Strength Tublar Steel with 40 mil Polyurea Coating
Overall Length 319 in. (8.10 m)
Wheelbase 183 in. (4.64 m)
Overall Width 135 in. (3.4 m)
Overall Height 147 in. (3.73 m)
Weight - Single Product 25,860 lbs.
Weight - Double Product 26,800 lbs.
Weight - Triple Product 26,980 lbs.
Row Crop Tires 380/90R46 173D (Standard) 380/105R50 179D (Optional) 420/95R50 177D (Optional) 480/80R50 177D (Optional)
Flotational Tires 650/65R38 710/70R38 800/50R42
